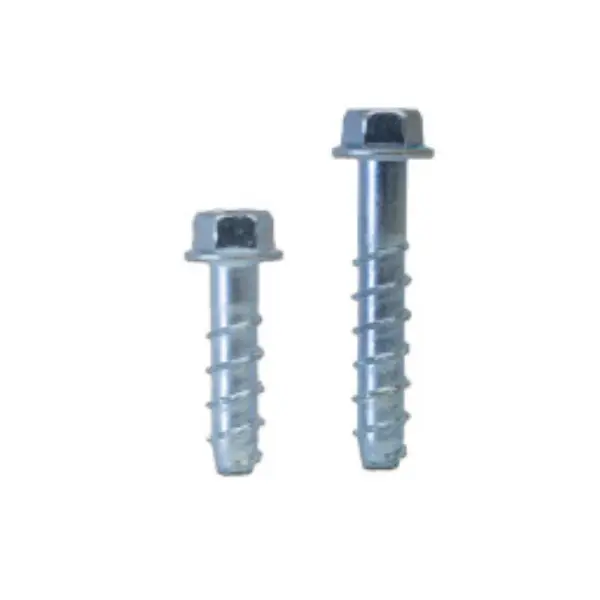

Simpson Strong-Tie THDB25234H Titen HD® 1/4 in. x 2-3/4 in. Heavy-Duty Screw Anchor (50-Qty) (Pack of 490)

Marketing Attributes

Brand Name : Simpson Strong-Tie®

eCommerce Name : Simpson Strong-Tie THDB25234H Titen HD® 1/4 in. x 2-3/4 in. Heavy-Duty Screw Anchor (50-Qty) (Pack of 490)

Category Path : Concrete Connectors and Anchors > Mechanical Anchors > Screw Anchor

Subcategory : Concrete Connectors and Anchors

Subcategory 2 : Mechanical Anchors

Product Class : Screw Anchor

The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.

---

Features

• Qualified for static and seismic loading conditions

• Thread design undercuts to efficiently transfer the load to the base material

• No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits

• Hex-washer head requires no separate washer and provides a clean installed appearance

• Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility

• Zinc-plated carbon steel anchor can be used for temporary exterior applications

• Size: 1/4 in. x 2-3/4 in.

• Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity

---

Dimensions

Assembled Depth – Imperial : 0.56

Assembled Depth UOM – Imperial : in.

Assembled Height – Imperial : 3.0305

Assembled Height UOM – Imperial : in.

Assembled Width – Imperial : 0.56

Assembled Width UOM – Imperial: :in.

Quantity: 490

---

Regulatory

Country of Origin : CN

Limited Warranty :Limited warranty, available at www.strongtie.com/limited-warranties.

Prop 65 Warning : Yes

Prop 65 – Cancer : Crystalline Silica

Prop 65 – Reproductive Toxicity : None

Prop 65 – Short Text : WARNING! Cancer – www.P65Warnings.ca.gov

Prop 65 – Long Text
WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
