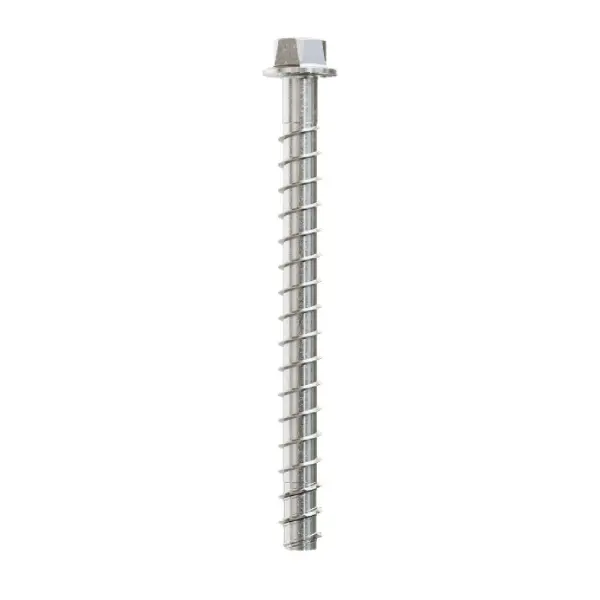

Simpson Strong-Tie THD37500H6SS Titen HD® 3/8 in. x 5 in. Type 316 Stainless Steel Heavy-Duty Screw Anchor (50-Qty) (Pack of 216)

Marketing Attributes

Brand Name :Simpson Strong-Tie®

eCommerce Name : Simpson Strong-Tie THD37500H6SS Titen HD® 3/8 in. x 5 in. Type 316 Stainless Steel Heavy-Duty Screw Anchor (50-Qty) (Pack of 216)

Category Path : Concrete Connectors and Anchors > Mechanical Anchors > Screw Anchor

Subcategory : Concrete Connectors and Anchors

Subcategory 2 : Mechanical Anchors

Product Class : Screw Anchor

The Titen HD stainless-steel screw anchor for concrete and masonry sets the standard for when the job calls for installation in multiple types of environments. It is the ultimate choice to provide fast and efficient installation, combined with long-lasting corrosion resistance for an unsurpassed peace-of-mind. The THDSS is a state-of-the-art screw anchor solution that combines the corrosion resistance of Type 300 Series stainless steel with the undercutting ability of heat-treated carbon-steel cutting threads. Type 316 is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present. Type 304 is a cost-effective solution for less extreme applications where the environment may be wet, moist or damp.

---

Features

• Qualified for static and seismic loading conditions
• Thread design undercuts to efficiently transfer the load to the base material
• No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
• Hex-washer head requires no separate washer and provides a clean installed appearance
• The THDSS has an innovative carbon-steel thread that effectively cuts the concrete while significantly limiting the amount of carbon steel in the anchor; less carbon steel, less expansion
• Size: 3/8 in. x 5 in.
• Made from Type 316 stainless steel for superior corrosion resistance
• Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
• Quantity: 50

---

Dimensions

Assembled Depth – Imperial : 0.8

Assembled Depth UOM – Imperial : in.

Assembled Height – Imperial : 5.39

Assembled Height UOM – Imperial : in.

Assembled Width – Imperial : 0.8

Assembled Width UOM – Imperial: :in.

Quantity: 216

---

Regulatory

Country of Origin : CN

Limited Warranty : Limited warranty, available at www.strongtie.com/limited-warranties.

Prop 65 Warning : Yes

Prop 65 – Cancer : Crystalline Silica

Prop 65 – Reproductive Toxicity : None

Prop 65 – Short Text : WARNING! Cancer – www.P65Warnings.ca.gov

Prop 65 – Long Text : WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
